Description

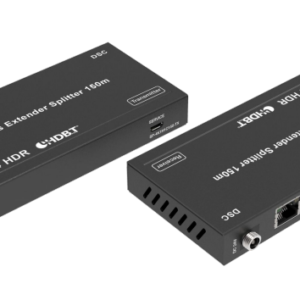

Using the latest low latency Display Stream Compression (DSC), the 18Gbps HDMI Extender-Splitter Kit can extend high-definition video and audio signals, RS-232 and bi-directional IR up to 492ft / 150 meters over a single CAT cable. It supports resolutions of up to 4K2K@60Hz 4:4:4,18Gbps and HDCP 2.2. An HDMI loop output port will split the HDMI Input to a local Display. It also supports de-embedded audio for L/R audio output and PoC. The extender is equipped with two-way IR pass-through which allows for source and display control.
Utilizing DSC the extender splitter supports HDR10+, HLG and Dolby vision with the best light weight visually lossless compression.
This extender-splitter kit offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability and is the perfect solution for any application.
Features
· HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
· Support 18Gbps 12-bit video bandwidth with DSC
· The maximum extended transmission distance via a single Cat5e/6 cable:
· 394ft / 120 meters for 4K2K60 4:4:4;
· 492ft / 150 meters for 1080P
· One HDMI loop output on the transmitter
· De-embedded 3.5mm audio output on receiver for sources set to PCM audio (No down mixing)
· With bi-directional IR, RS-232 and CEC pass-through
· HDR, HDR10+, Dolby Vision and HLG supported
· 24VPoC (Power over Cable) on one end
